Rotator specifications:
- Max wind load area 2.5 m²
- Braking torque 3.000Kgcm = 294Nm
- Rotating torque 2000Kgcm = 196Nm
- Max vertical load 650Kg
- Motor voltage 12 VDC
- Rotating range 500° (70+360+70)
- Rotation speed ~90 secondi per 360°
- Reading accuracy ~1% no backlash
- Diametro mast 48-50mm
- Operational temperature range (°C): rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C): rotor unit -40° ÷ +70°
control box -25° ÷ +60°
Controller specifications:
- USB Com port for PC
- Soft start - soft stop with programmable ramp
- Programmable speed + Preset
- Max rotation range 500° (70+360+70)
- Programmable end rotation limits
- Selectable south stop or north stop
- All settings are programmable by PC
- Control box power input 230VAC (115VAC) , 50-60Hz, 50VA
- Direction reading Digital (potentiometer)
- Limits Electronic, adjustable by software
- Rotator cable 5 wires (2 x 1mm² + 3 x 0,5mm²)
- Weight ~ 5 kg

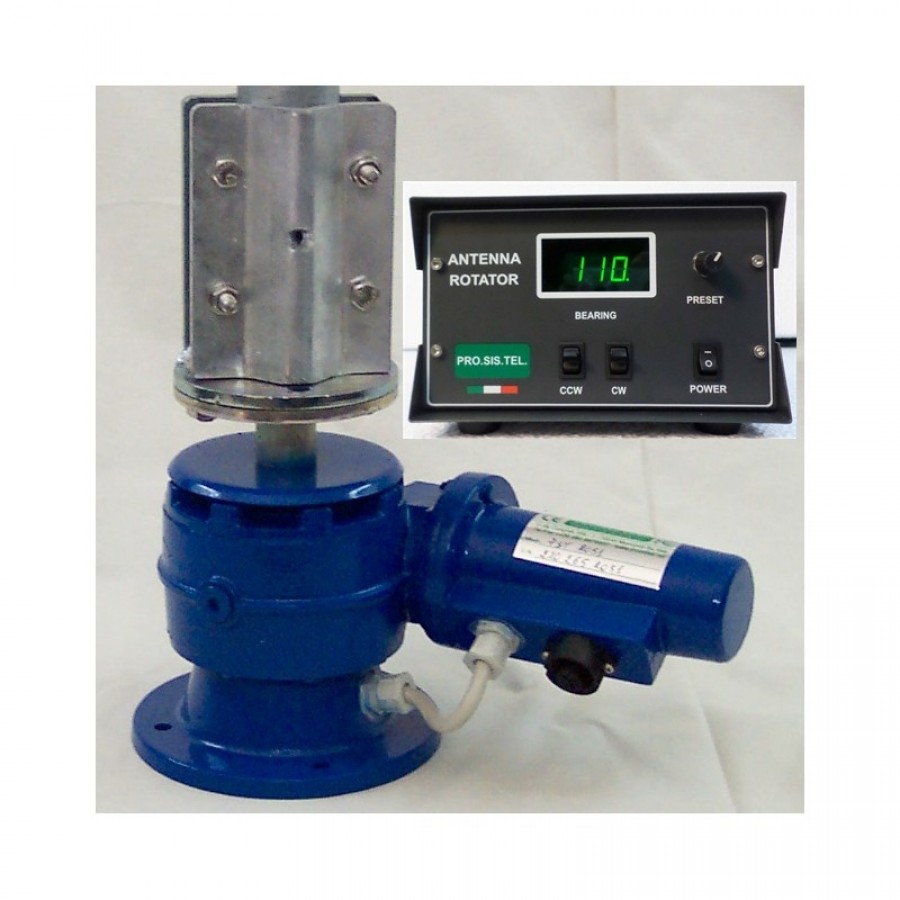

Heavy duty antenna Rotator, handle up 2.5 m2 (23 sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque
Soft start e soft stop with programmable ramp speed.
Two years warranty
Ρότορας περιστροφής Prosistel PST2051D
- Κατασκευαστής: PRO.SIS.TEL
- Κωδικός Προϊόντος: PRO-PST2051D
- Διαθεσιμότητα: Κατόπιν παραγγελίας.
-
992,00€
- Χωρίς ΦΠΑ: 800,00€
