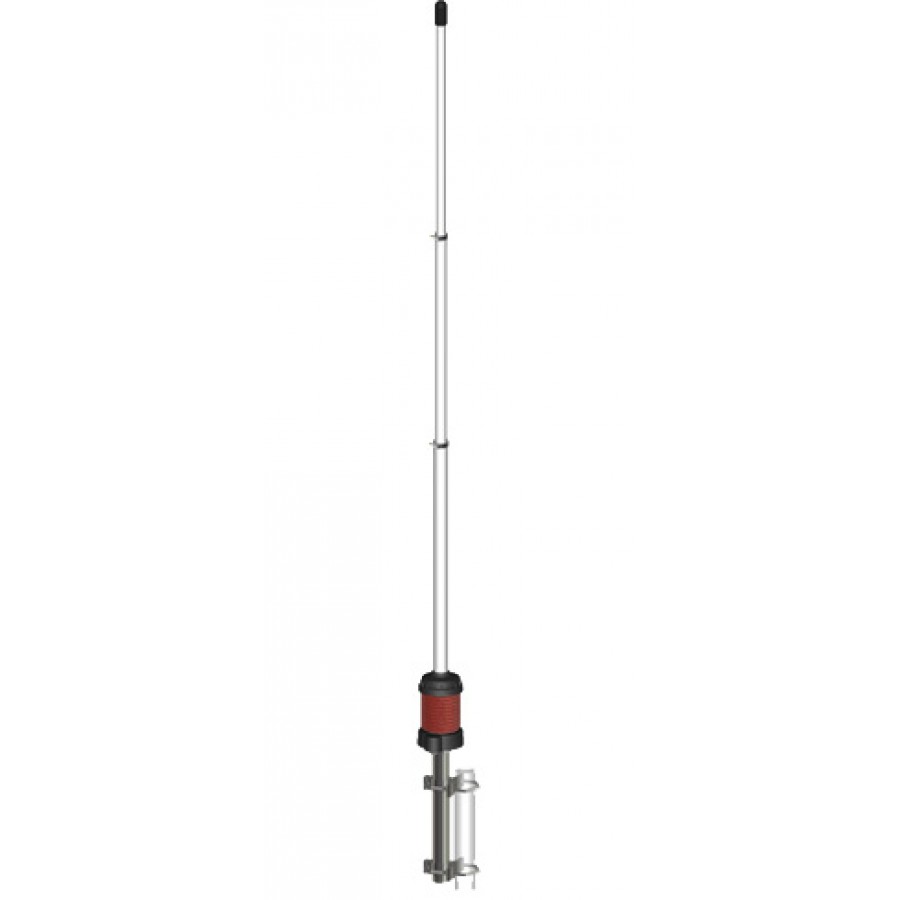

Κεραία βάσεως Sirio Gain Master HW για 10m(HAM) και 11m(CB) Hi-Tech fiberglass.

Electrical data

Type:     1/2 λ center feed
Radiation:     Omnidirectional
Polarization:     Linear vertical
Frequency range:     27.2 ... 30 MHz Tunable
Systems:     10m HAM και 11m CB
Gain:     0 dBd - 2.15 dBi
Bandwidth:     ≥ 1.8MHz @ SWR ≤ 2
Max Power:     500 W (CW)

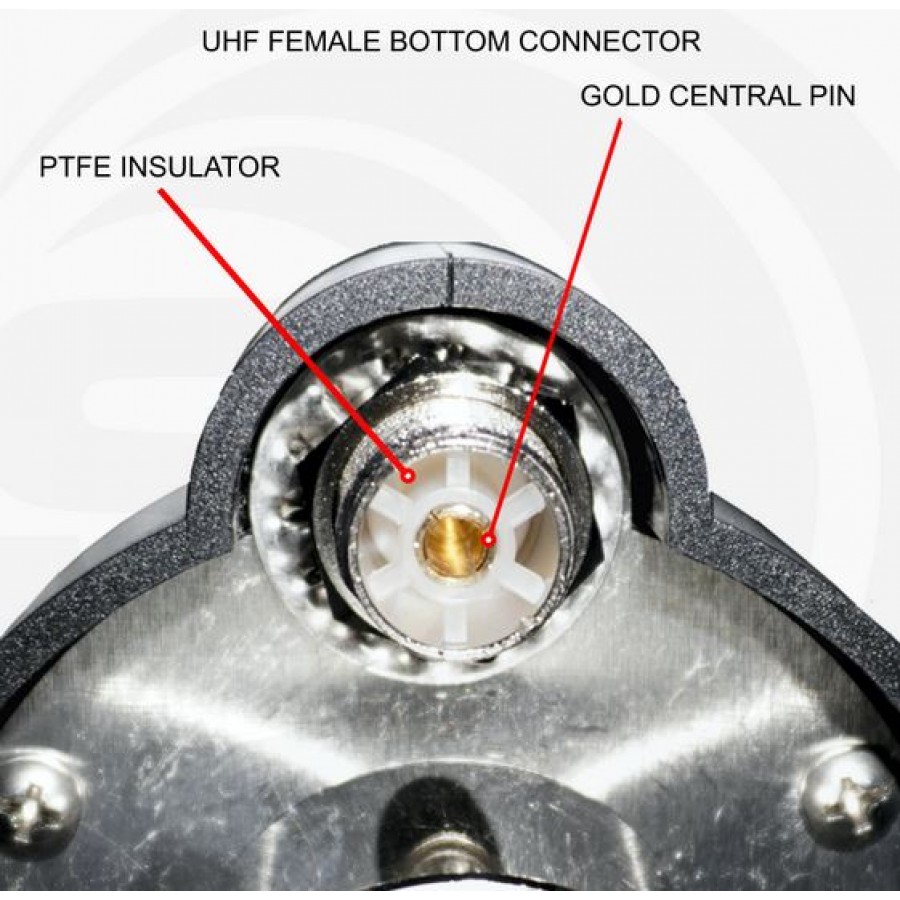

Connector:     UHF-female (SO-239)
Mechanical Data:
Materials:     Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized
Height (approx):     5560 mm / 18.24 ft
Weight (approx):     2600 gr / 5.73 lb
Mounting type:     On-Mast
